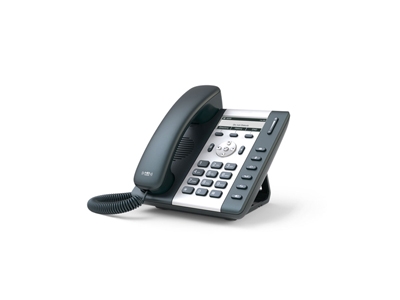

Wifi IP Phone M7

Download Datasheet    Get a Quote


• Modern and elegant design, exquisite workmanship, popular surface shape

• Top structure design and materials, excellent software and hardware adjusting ensure the quality of audio input and output, especially the use of strong power and full frequency horn, super-size sound chamber, makes the hands-free like big speaker, brings wonderful sound experience for personal office, which enables employees holding small hands-free meeting freely

• WiFi is convenient for user's deployment, seamlessly and easily be used in the wireless office network

• Dual-core CPU, processing of voice and application independently, improve voice quality and application processing speed.

• Rich application, perfectly compatible with leading IP PBX platform.

Basis functions

• 132*52 graphic character dot matrix with backlight LCD, 1 SIP account

• Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Caller ID, Redial, Mute

• DND, Local 3-Way Conferencing, Speed Dial, Voice Mail, Local Phonebook (up to 1000 entries)

• Direct IP call without SIP proxy, Black list, White list, Dialed/Received/Missed call (each 200)

• Call Center Headsets mode

IP PBX Features

Intercom, Paging, Call pickup, Call park, Anonymous call, Anonymous call rejection, Hold on music, Conference Call, Group pickup, DND & Call forward state synchronization, Call Recording


English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, Arabic, Polish, Turkish,Hebrew

Advanced Features

LDAP, Microsoft active directory (AD) server, XML remote phonebook

Audio Features

• 8 own ring tone, 2 custom ring tone article, 8 volume adjustable + Mute mode, Narrowband codec: G.711(a/μ), G.729A/B/AB, G.726, iLBC,

• Wideband codec: G.722, L16, Support VAD, CNG, AEC, PLC, AJB, AGC, Full-duplex speakerphone with AEC

Network Features

• LAN / PC: support bridge mode, Open VPN support, SIP connection mode: Proxy mode, and P2P mode, Support DNS SRV (RFC3263).

• NAT transverse: STUN mode. DTMF: In-band, RFC2833, SIP INFO, Support QoS, HTTP / HTTPS web server, Package tracing export, Syslog

WiFi Features

IEEE 802.11b/g/n, Enhanced support for IEEE 802.11e QoS, Support APA, APA2, IEEE802.11i (WPA, WPA2) authentication


VLAN, LLDP, IEEE802.1X, TLS, HTTPS, SRTP (RFC3711), Digest authentication using MD5/MD5-sess, AES encryption for configuration files, Phone lock, User and administrator level access control


Configurable through web interface/phone, Provisioning: Auto-provision via FTP/TFTP/HTTP/HTTPS, DHCP Option 66, Remote Provision Service (RPS)


Power Interface: DC 5V-1A, PoE power supply: IEEE 802.3af Class 2, 2x RJ45 10/100M or 100/1000M adaptive Ethernet ports, 1x RJ9 headphone jack, 1x RJ9 handset jack

Keys Features

1 status indicator, 3 soft keys, 5 navigation keys, 1 volume keys, 8 function keys (menu, cancel, hold, voicemail, mute, headphone, redial, hands-free)

Temperature and Humidity

Operating temperature: -10 ~ 50°C, Operating humidity: 10 ~ 90%


Qty/CTN: 10 PCS, G.W/CTN: 11KG, Gift box size: 280mm (L)*210mm(W)*78mm(H), Carton Meas: 425mm(L) *415mm(W) *300mm(H)

PBX Compatibility

Broadsoft, Asterisk, Elastix, Trixbox, Freeswitch, Huawei, Avaya, Mitel, Unify, ZTE, Epygi


CE: EN60950, FCC: Part15
