Unified Communication
Product: Integrated Gateway (Or called as Unified Communication Gateway too)
Integrated Access Gateway series is an All-in-one device which provides with all varieties of communication interfaces like E1, FXO / FXS, GSM /CDMA / WCDMA, PTT & Radio (HF, UHF, VHF), Audio, E&M, Magnet, SIP & SIP Subscribers, IMS interface, as well as X86 industrial computer card and MIPs embedded card that are for customers to install their own software (like IP PBX, Soft Switch, Asterisk, etc).
Background:
Mass-market VoIP services started in 2004, and has been rapidly grew for recent years.
It is becoming increasingly common for telecommunications providers to use VoIP telephony over dedicated and public IP networks to connect switching centers and to interconnect with other telephony network providers.
Because of the bandwidth efficiency and low costs that VoIP technology can provide, businesses are migrating from traditional copper-wire telephone systems to VoIP systems to reduce their monthly phone costs.
And vice versa, many SIP providers who provide VoIP services, to match with customers’ requirements, should connect their VoIP networks to customers’ traditional PSTN network.
How to connect varieties communication interfaces to VoIP?
For users who are using varieties communication interfaces, how to connect all of them by one single device to VoIP? And how to make connection between all of them?

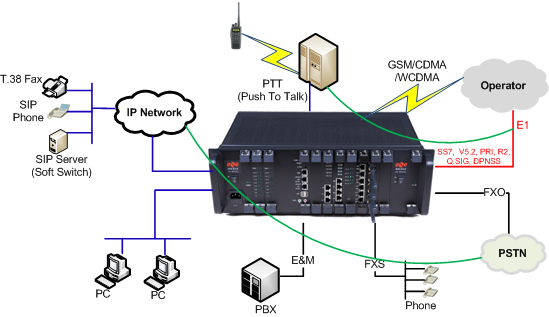

For example:
Under such a situation, all-in-one device Integrated Gateway / UC Gateway which makes connection between them, is designed and manufactured by NICEUC.
By using Integrated Gateway / UC Gateway, connection between different kind of communication interfaces and VoIP network are established. Meanwhile, connection between different communication interfaces are built up too. After connecting, any user who has any communication interface, will easily use IP network and get benefit from VoIP technology.
Why choose Integrated Gateway / UC Gateway from NICEUC?
•Easy connection is established between different kind of communication interfaces and VoIP network.
•With carrier-grade, Reliable, high performance and Cost-effective products, one single unit device “Integrated Gateway / UC Gateway” from NICEUC will solve varieties connection problem.
•Flexible call rules and call routes, fully match with special requirement from customers.
•Scalable modular design, it is convenient for users and customers to expand business easily in future.
•All kinds of signaling (ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS) are supported by NICEUC Media Gateway / Trunking Gateway, one unit will solve varieties of connection.
•7*24 technical support by remote access, free firmware updating.
Brief introduction for specification of the products used in this solution:
Item | NC-MG320-X | NC-MG640-X | NC-MG930-X |
Slot for PSU | Built-in | 1 | 2 |
Slot for MCU | Built-in | 1 | 1 |
Slot for LPU Card | 1 | 4 | 12 |
FXO / FXS Interface | 16 to 32 | 0 to 64 | 0 to 192 |
SIP Trunk | 64 or 128 | 64 or 128 | 64 or 128 |
E1 / T1 port (PCM) | 0 to 4 | 0 to 4 | 0 to 4 |
Magnet Port | 0 to 8 | 0 to 32 | 0 to 96 |
E&M Trunk Port | 0 to 8 | 0 to 32 | 0 to 96 |
Audio Port | 0 to 4 | 0 to16 | 0 to 48 |
Radio Port | 0 to 4 | 0 to 16 | 0 to 48 |
GSM / CDMA / WCDMA Port | 0 to 8 | 0 to 32 | 0 to 96 |
X86 Industrial card | 0 to 1 | 0 to 1 | 0 to 3 |
MIPs Embedded Card | 0 to 1 | 0 to 1 | 0 to 12 |
Ethernet/LAN Port | 2（10/100/1000M Base-T ） | ||
Console Port | 1（RS232 PORT | ||
SIP Compatibility | CISCO, Siemen, AVAYA, Huawei, ZTE, etc. | ||
Radio Compatibility | Motorola, Tetra, Hytera, Gota, etc. | ||
Input Voltage | DC -48V or AC 110-240V | DC -48V or AC 110-240V | DC -48V or AC 110-240V (Redundancy) |
Power | 40W | 90W | 200W |
Device Dimension | 480mm*286mm*88mm (2U) | 480mm*300mm*88mm(2U) | 480mm*300mm*160mm (3.5U) |
Weight | 7KG | 7.5KG | 10.5KG |
For more information about above products, please turn and click to the menu "product"-" Integrated Gateway / UC Gateway" on our website, or please contact us freely.
