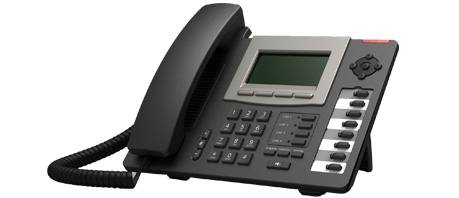

IP Phone M9

Download Datasheet    Get a Quote


Economic and High CP value IP Telephone with HD voice, the M Series was designed and built for Enterprise Businesses with its modern design and ergonomic feel.

· Support SIP 2.0 (RFC3261) and correlative RFCs

· Support 4 SIP lines. Can connect to 4 SIP servers at the same time.

· Support multi line/HD voice

· Support iax2 line key/ IAX2

· Codec:G.711A/u, G.723.1 high/low, G.729a/b, G.722.1,G.726

· Echo cancellation: G.168 Compliance in LEC, additional acoustic echo cancellation(AEC) can reach 96ms max filter length in hands-free mode

· Support Voice Gain Setting, VAD, CNG

· Full duplex hands-free speaker phone

· SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/ IP call

· DTMF: Support SIP info, DTMF Relay, RFC2833

· 9 kind of ring type and 5 user-defined music ring

· Large dot matrix LCD display and softkeys make user easier to use

· Friendly graphic menu

· Support headset jack- RJ9

· 4 line keys defined as multi line with screen display, or used as SIP line keys

· 8 DSS keys

· Soft keys programmable; function keys programmable

· SIP application: support call forward/ transfer (blind/attended)/ holding/ waiting/ 3 way talking/ conference/pickup/ join call/ redial and unredial/ click to dial

· Call control features: flexible dial map, hotline, empty calling no. reject service, black list for reject authenticated call, white list, limit call, no disturb, caller ID, CLIR (reject the anonymous call), CLIP (make a call with anonymous), Dial without register

· Incoming calls /outgoing calls / missing calls. Each support 100 records.

· Support Phonebook 500 records、SMS、XML、Speed dial、 SRTP、Blf

· Code synchronization via IP PBX/IMS

· Support EXT DSS consoles with 5max.

· Support click to dial via web phone book/ Group listening

· Voice codec setting for each SIP line

· Support keypad lock, and emergency call during the keypad lock.

· Ring play via headset or speaker setting

· Signal tone parameters customized

Network Features

· WAN/LAN: 10/100M Ethernet ports, supports Route and Bridge mode.

· Support bridge working as hub(optional)

· Support PPPoE for xDSL

· Support PoE (optional)

· Support VLAN(voice vlan/data vlan)

· Support 802.1

· Support basic NAT and NAPT

· NAT transverse:support STUN client

· Support DHCP client on WAN

· Support DHCP server on LAN

· Support main DNS and secondary DNS server.

· Support DNS Relay, SNTP Client, Firewall and open VPN

· Support VPN (L2TP) and DMZ

· QoS with DiffServ

· Network tools in telnet server: including ping, trace route, telnet client

Maintenance and Management

· Web ,telnet and keypad management

· Management with different account right

· Upgrade firmware through HTTP, FTP or TFTP

· Support dhcp option66 auto provisioning

· Telnet remote management/upload/ download setting file

· Safe mode provide reliability

· Support Auto Provisioning to upgrade firmware or configuration file(HTTPS/FTPS optional)

· Support TR-069(optional)/ Syslog

• Adapter Input: AC 100-240V

• Adapter Output: DC 5V/1A

• WAN Port -10/100 BASE-T RJ-45 for LAN

• LAN Port-10/100 BASE-T RJ-45 for PC

• Headset : RJ9

• Power consumption: IDLE: 2.5W Active: 2.8W

• Display Resolution: 128x48 pixels

• Operation Temperature: 0〜40℃

• Relative Humidity: 10〜65%

• Main Chipset : Broadcom

• SDRAM: 128MB


• Weight- Phone:0.95kg

• Dimension:290x260x60mm
