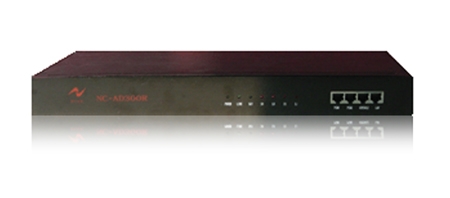

NC-AD300R signaling gateway, focus on a switch to a signaling conversion applications, low power, low cost, reliable, high efficiency, cost-effective to save the user cost.
·Signaling support ：SS7，PRI，Q.SIG，R2，V5.2;
·Interface Connector：2E1（T1），1 10/100M network， 1 RS232 console;
·Link： 2SS7 links，2 PRI;
·Switching Volume：2048 x 2048;
·Clocking accuracy：stratum 3 Clock;
·Clocking Source：E1，inner;
·Resource：256 Voice channels, 256 meeting channels, 256 DTMF channels, FSK inspection and delivery;

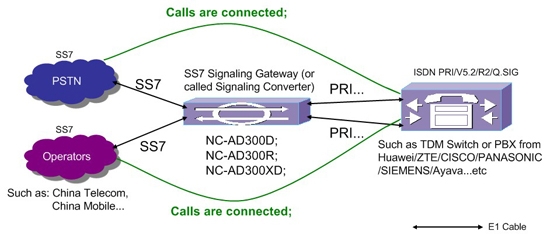

·Convert any signaling between SS7, ISDN PRI, Q.SIG,V5.2, R2;
·Multi router, inter-office management, Intelligent router distribute and telephone traffic sharing;
·Grouping switching management;
·User identifier, can provide black and white name list or connect to the database;
·Powerful calling function to provide customize calling mode;
·Voice management function with voice record and voice play;
·Meeting function;
·Calling number and called number modification;
·Real time telephone traffic monitor and handling;
·Can expand the capacity through multi stack;
·Provide CTILink API interface for user program control;
Interface | Standard | The Type of Connector | ||||
PCM | E1，G.703 | CC4/BNC/RJ45 | ||||
Ethernet Port | 10/100Base-T，IEEE802.3 | RJ45 | ||||
Serial Port | RS232 | RJ45 | ||||
Item | Specification | |||||
Input voltage | -48v DC or 200～240V AC | |||||
Power | 15 W | |||||
Dimension | （width×depth×height） | 435mm×200mm×44mm (1U) | ||||
Weight | 1.5 kg | |||||
Environment | Temperature | 0℃～50℃ | ||||
Rel Humidity | Less than 80％ | |||||
Product Packaging | ||||||
Packaging | Carton Box | |||||
Packaging Size | 56cm*41cm*15cm | |||||
