                                                         Signaling Conversion between R2 and Q.SIG

This is one successful and real application case in North America.


Background:
Operator TELMEX provide R2 signaling only, however, PBX at end user site supports Q.SIG signaling only. Then because of different signaling, both sides cannot connect with each other.

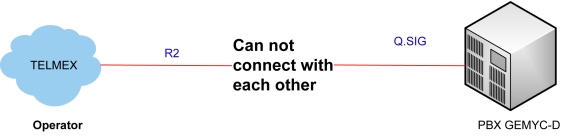

Please see the following diagram:






Solutions: How to make connection between them
In such a case, to establish calls between Operator and the end user side, they must use one same signaling, so there need to convert the signaling. Then a “signaling converter or signaling gateway NC-AD300D” from NICEUC company will fixed this problem.

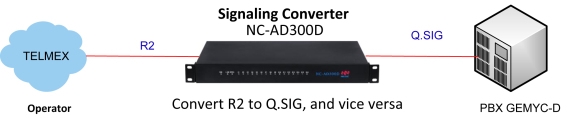

Regarding above requirement, we provide the following solutions: among the two sides, add NC-AD300D; convert the R2 signaling of Operator to the signaling Q.SIG of end user, or convert the signaling Q.SIG of end user to the R2 signaling of Operator, Plz check the following picture:

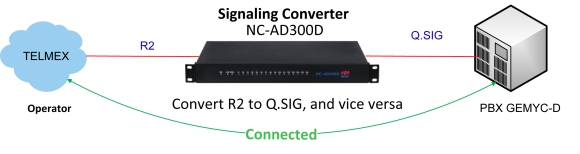

After adding “signaling converter or signaling gateway NC-AD300D”, connection between Operator and end user has been established, then they can make calls with each other as showing here:



Summary for solutions of signaling conversion:

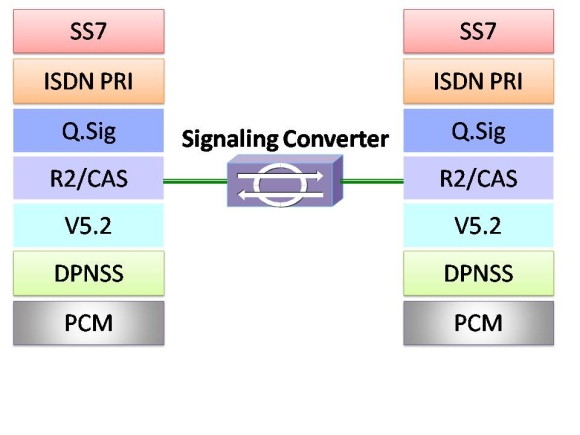

As this picture shows, our solutions of signaling conversion can complete the arbitrary conversion among SS7, ISDN PRI, V5.2, R2, Q.SIG, CAS, Chinese CSS1, DPNSS, private signaling, etc.


Brief introduction for the product "Signaling Gateway / Converter" used in this solution:

Model Number
Capacity
Signaling which can be converted
NC-AD300R
2E1
SS7, ISDN PRI, V5.2, R2, Q.SIG, CAS, Chinese CSS1, DPNSS, private signaling
NC-AD300D
2E1 to 16E1
NC-AD300XD
Up to 100E1


For more information about product "Signaling Gateway / Converter", plz turn and click to the menu "product"-"Signaling Gateway/Converter” on our website, or plz contact us freely.
